BIPV Glass Panels
Thin Film CadTel PV Module
Specification：
Power range: 50~105W
Size: 1200*600*18.24mm, 1800*1200*18.24mm
Features：

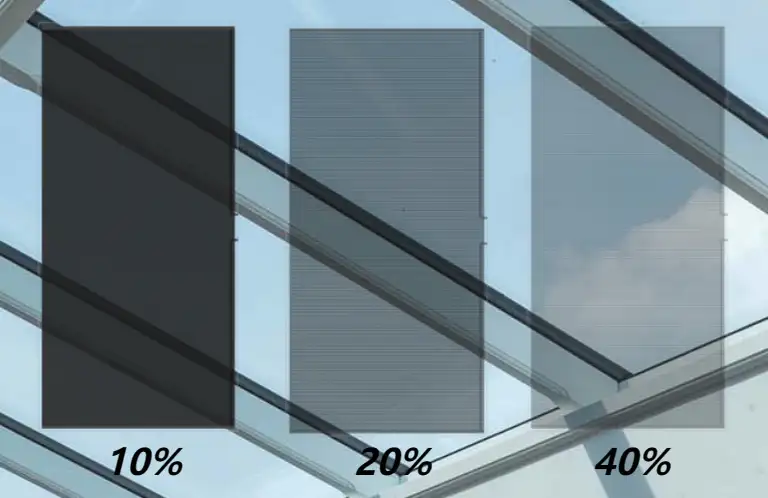

- 10% -60% transmittance customizable
- -0.29%/°C Better Temperature Coefficient
- Crystal clear appearance
- Standardized modular design for easy installation

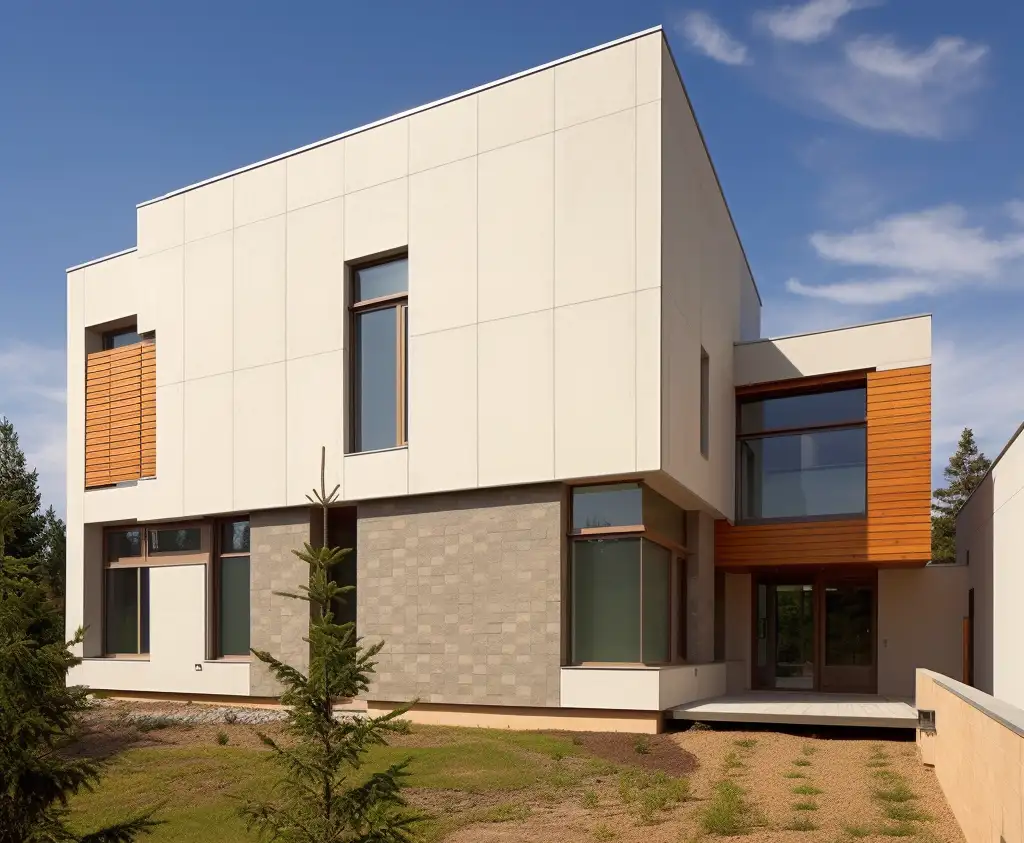

Solar Siding Module
Specification：
Power range: 250~380W
Size: 1805×1150×14.4mm
Features：
- Combining highly efficient solar technology with seamless aesthetics
- Custom color, pattern, and surface finishing effects available
- Seamlessly hidden wiring and circuitry mounted
- Easily incorporated into building system standards for fast installation
- Reduce their reliance on carbon-emitting energy from the grid

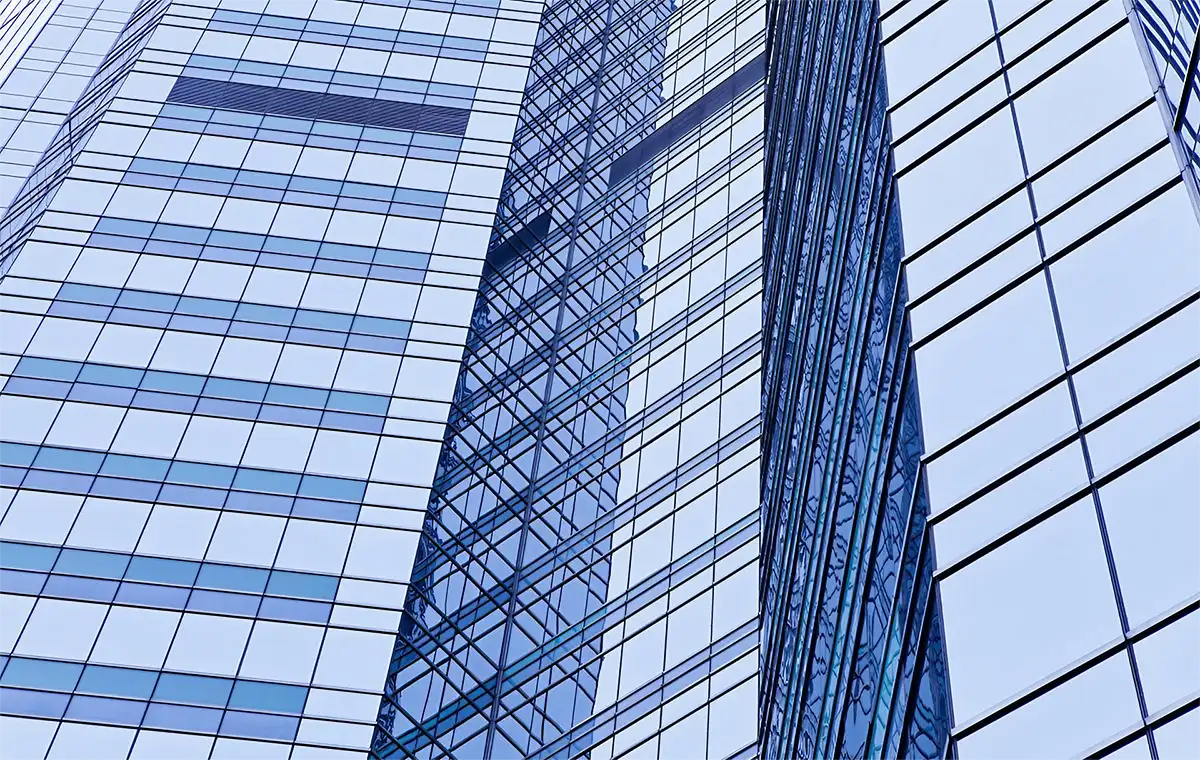

PV Curtain Wall Module
Specification：
Power range: 180-400W
Size: 1805*1150*14.4mm
Features：
- Applicable to the exterior vertical facades: eastern, southern and western facades of the building
- Incorporated as color glass into curtain wall, without compromising aesthetics
- High reliability packaging materials ensure a service life up to 30 years
- Customizable tempered glass facing layer
- Conforms to the building system standards, easy to install

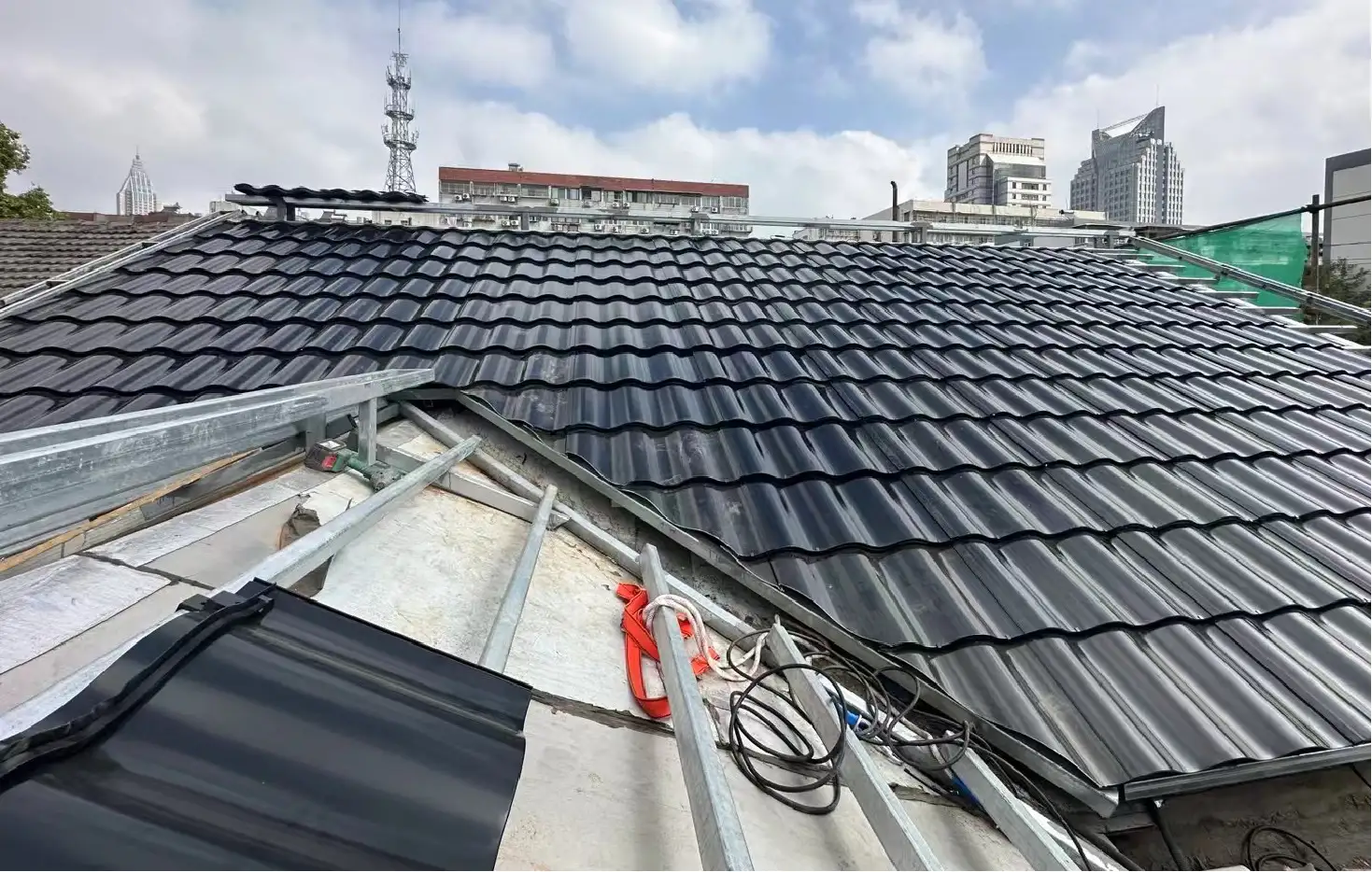

Curved Solar Tile
Specification：
Nominal Power: 46W, 48W, 50W
Module Size (mm): 685*420*9
Weight (kg): 5.5
Cable: 500mm, 4mm², custom available
Features：
- Patented dual protection technology ensures roof safety and long-term durability.
- Modular design allows for quick and efficient installation, saving time and costs.
- Customizable color options cater to diverse architectural style preferences.
- IP68 rated junction box, reliable cables and standard MC4 connectors improve the stability.

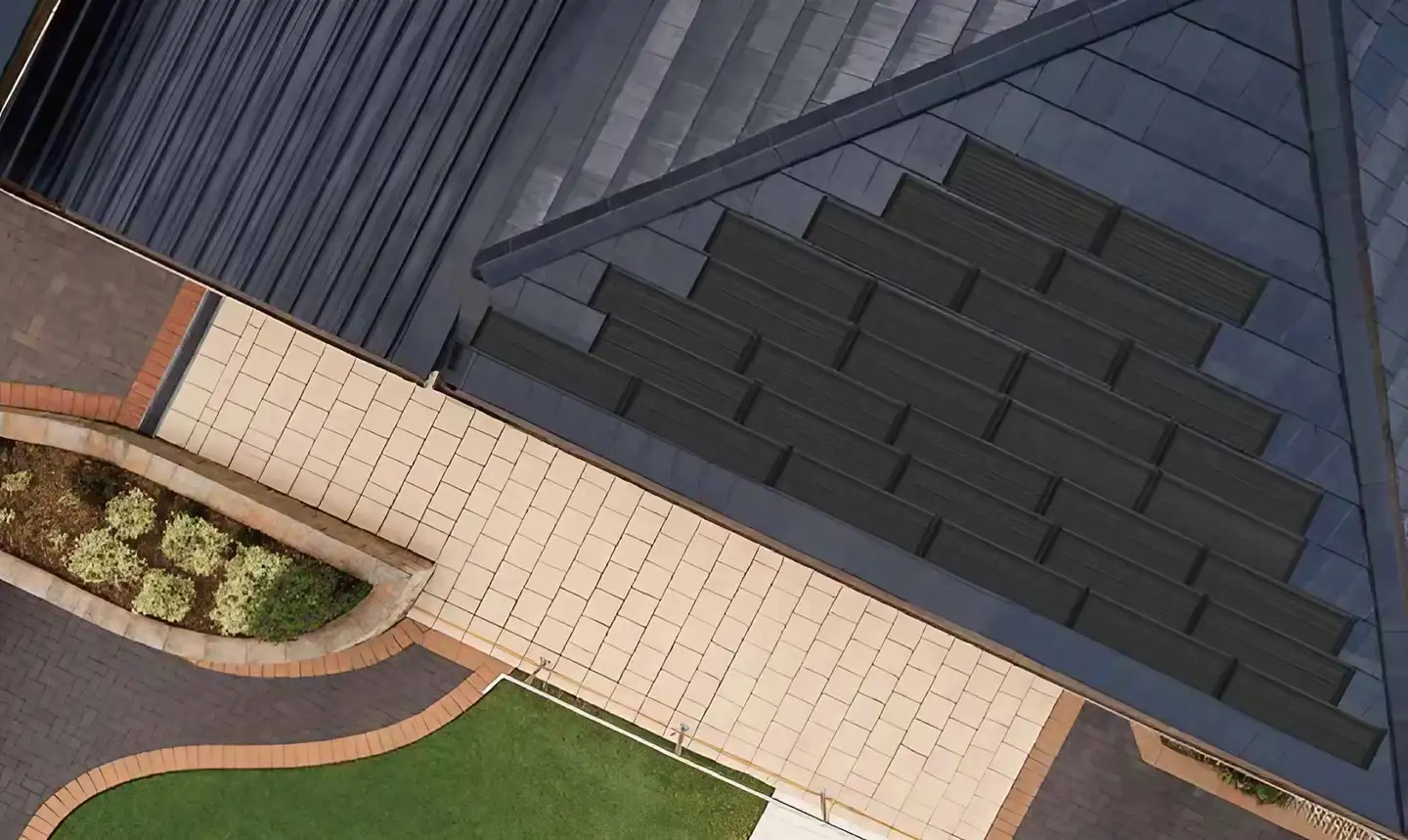

PV Slate Roof Module
Specification：
Power range: 125-135W
Size: 1580*522*37mm
Features：
- Replaces conventional cement and clay tiles, weighing only half as much while being several times stronger than ordinary tiles
- Suitable for high-end villas, clubs, venues, and public buildings
- Offers a perfect blend of modern technology and traditional architecture, with multiple color choices
- Integrated solar power roof design, providing a comprehensive system solution.
- Compliant with building system standards, allowing for easy installation.
- Individual panels can be easily disassembled for future maintenance.
Mono Flexible PV Module
Specification：
Nominal Power: 120-580W
Module Size (mm): 2260*1219/1110/1020/918/825/735/644/*2.7, 1545*425*2.7
Features：
- Upgraded efficiency and unprecedented flexibility.
- Weakened hot-spot effect, extremely low risk of micro cracks and increased stability by shingle-tech.
- Special connection method lowers the internal resistance and ensures better performance than traditional connection with busbar.
- IP68 rated junction box, reliable cables and standard MC4 connectors improve the stability.
